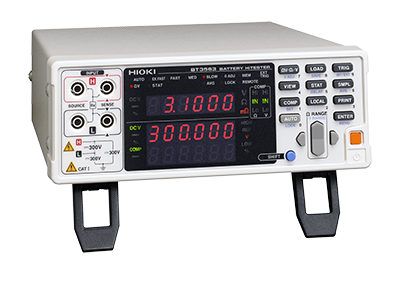

 Hioki BT3563 Battery Tester |
|
| 저항 측정 : 3mΩ ~ 3kΩ |
| 전압 측정 : 6Vdc ~ 300Vdc Resolution 1mV |
| ACCuray : ±0.01% |
|
|
|
|
|
|
 |
|
|
|
| Max. applied measurement voltage |
± 300 VDC rated input voltage
± 300 VDC Max. rated voltage to earth |
| Resistance measurement ranges |
3 mΩ (Max. display 3.1000 mΩ, resolution 0.1 mΩ) to 3000 Ω (Max. display 3100.0 Ω, resolution 100 mΩ), 7 ranges
Accuracy: 30 mΩ to 3000 Ω ranges, ± 0.5% rdg. ± 5 dgt. (Add ± 3 dgt. for EX.FAST, or ± 2 dgt. for FAST and MEDIUM)
3 mΩ range, ± 0.5% rdg. ± 10 dgt. (Add ± 30 dgt. for EX.FAST, or ± 10 dgt. for FAST, or ± 5 dgt. for MEDIUM)
Testing source frequency: 1 kHz ± 0.2 Hz, testing current: 100 mA (3 mΩ range) to 10 mA (3000 Ω range)
Open-circuit Voltage: 25 V peak (3/30 mΩ ranges), 7 V peak (300 mΩ range), 4 V peak (3 Ω to 3000 Ω ranges) |
| Voltage measurement ranges |
6 VDC (resolution 10 mV) to 300 VDC (resolution 1 mV), 3 ranges |
|
Accuracy: ± 0.01% rdg. ± 3 dgt. (Add ± 3 dgt. for EX.FAST, or ± 2 dgt. for FAST and MEDIUM) |
| Display |
31000 full digits (resistance), 600000 full digits (voltage), LED |
| Sampling rate |
Four steps, 4 ms (Extra-FAST), 12 ms (FAST), 35 ms (Medium), 150 ms (Slow)
(Typ., sampling time depends on supply frequency settings and function.) |
| Measurement time |
Response time + sampling rate, approx. 10 ms for measurements
(Response time depends on reference values and the measurement object.) |
| Comparator functions |
Judgment result: Hi/IN/Lo (resistance and voltage judged independently)
Setting: Upper and lower limit, Deviation (%) from reference value
Logical ANDed result: PASS/FAIL, calculates the logical AND of resistance and voltage judgment results.
Result display, beeper, or external I/O output, Open-collector (35 V, 50 mA DC max.) |
| Analog output |
Measured resistance (displayed value, from 0 to 3.1 V DC, -01 suffix models only) |
| Interfaces |
External I/O, RS-232C, Printer (RS-232C), GP-IB (-01 suffix models only) |
|
|
|
|
